CJ-2A Original Canvas Top and Bows

Doors

Click a picture for a larger image (1024 x 768, will open in a new window).

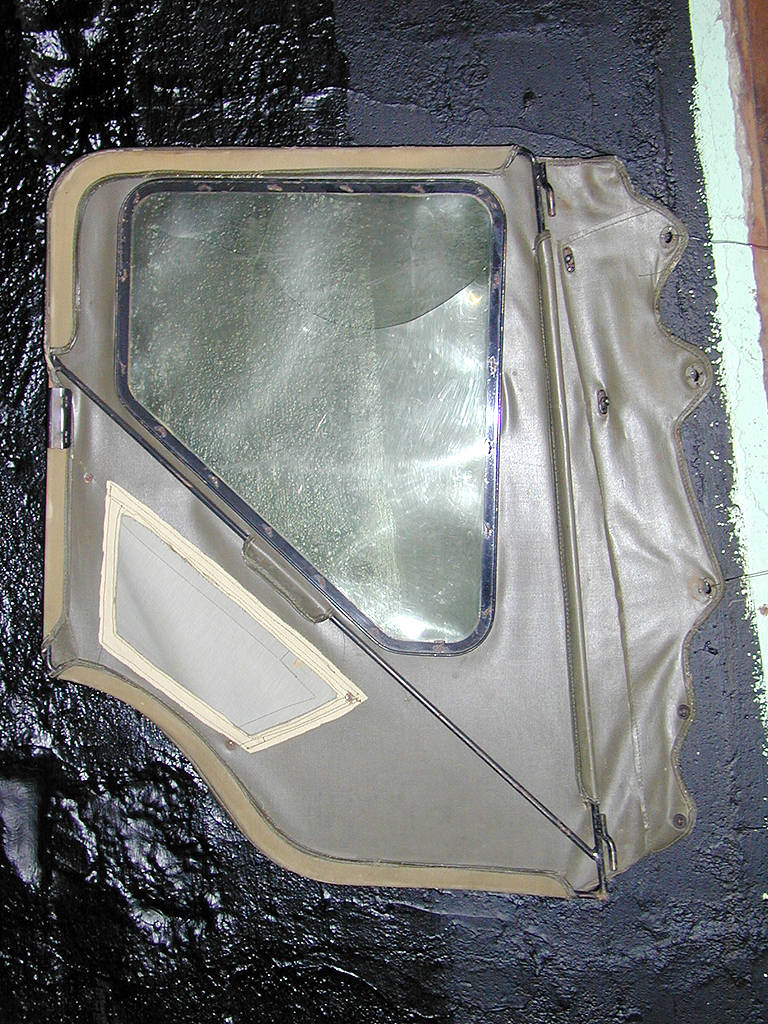

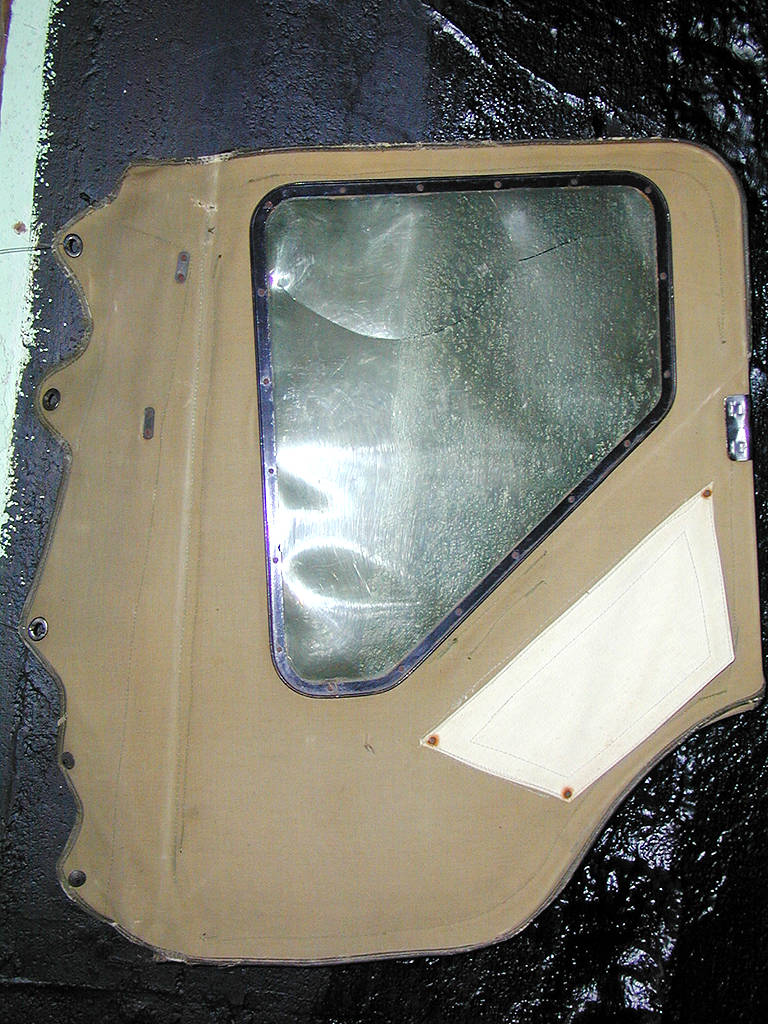

The drivers door. The white flap is for sticking your arm out to signal turns! Window plastic is rigid type, and cracked/yellowed. Passenger door is mirror identical, except for turn signal arm flap. The inner surface. Flap at right wraps around windshield outer frame upright, lower part snaps into tub spring sockets.

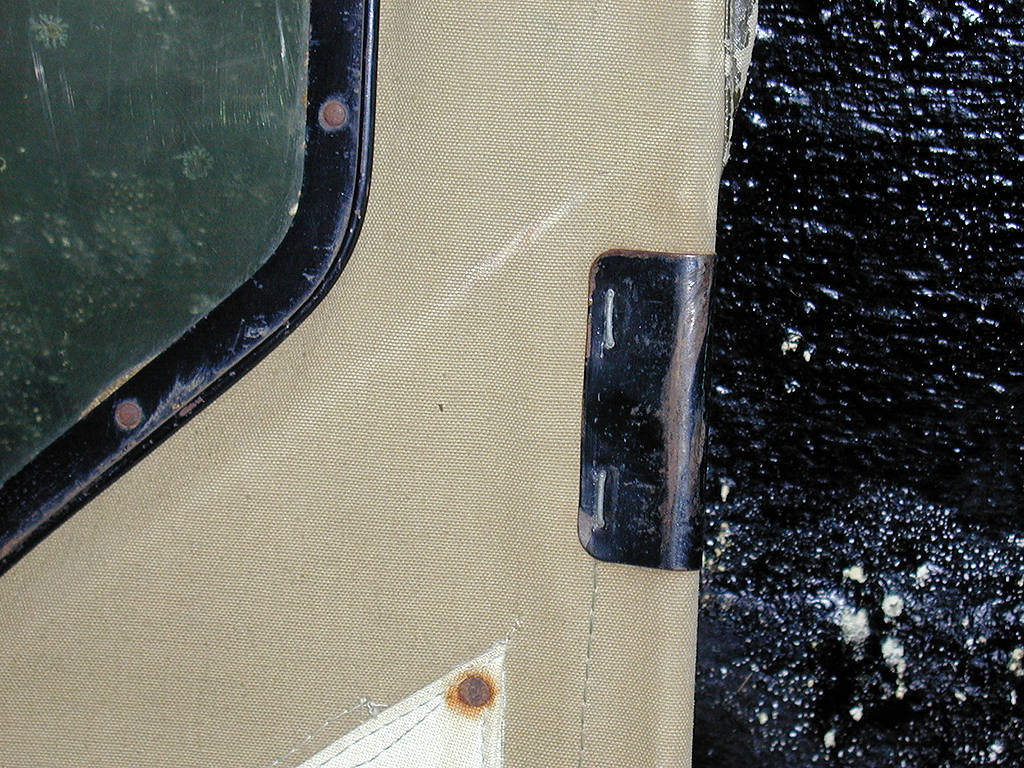

Door striker is just a metal plate wraped around door frame rod, and stapled together. Rigid window frame fastener method can be seen. Simple split rivet, like an Acco fastener used to hold papers together.

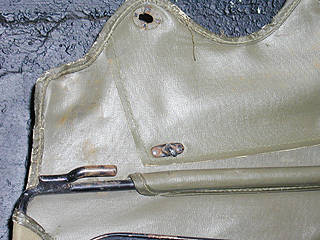

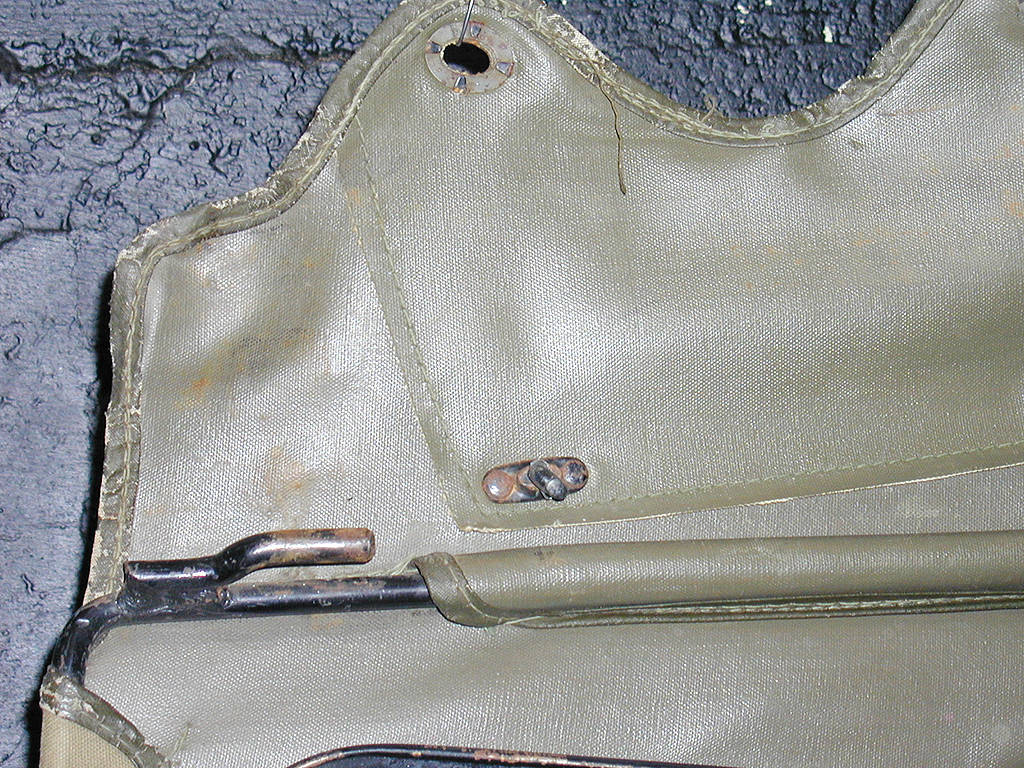

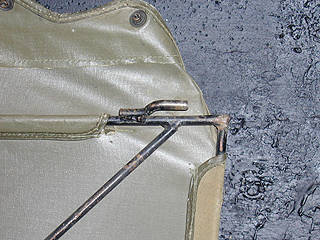

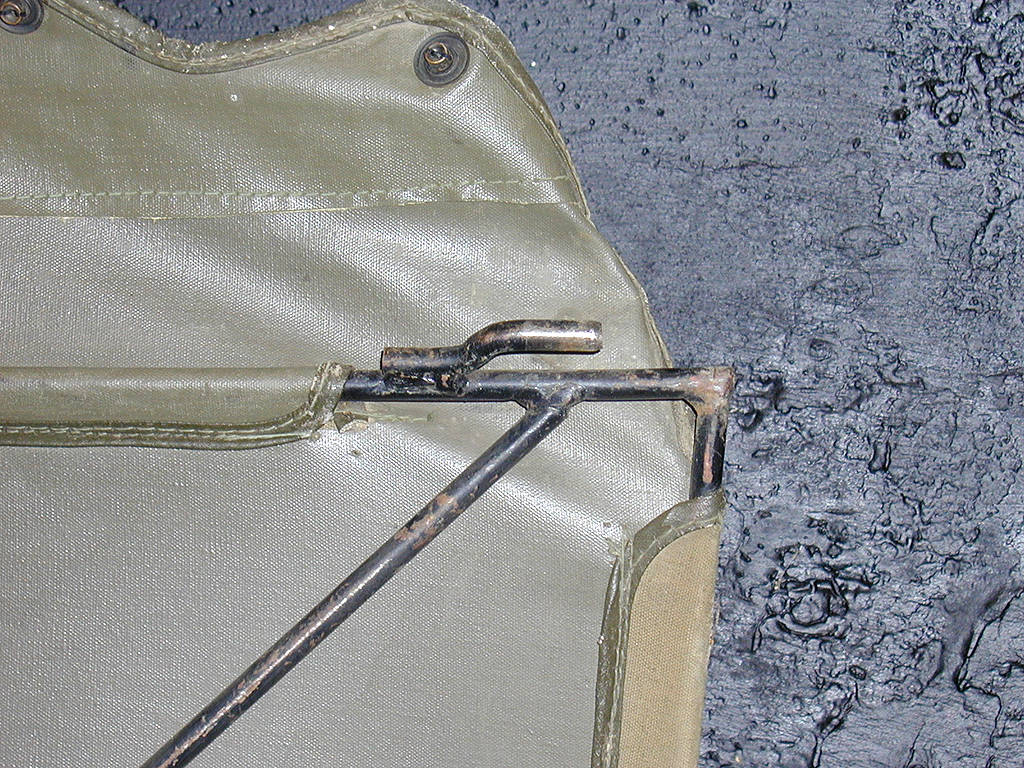

Upper door hinge pin. Doors just lift off. Lower hinge pin. Distance between pins is 31.5"


Door

Door Posts
