Click a picture for a larger image (1024 x 768, will open in a new window).

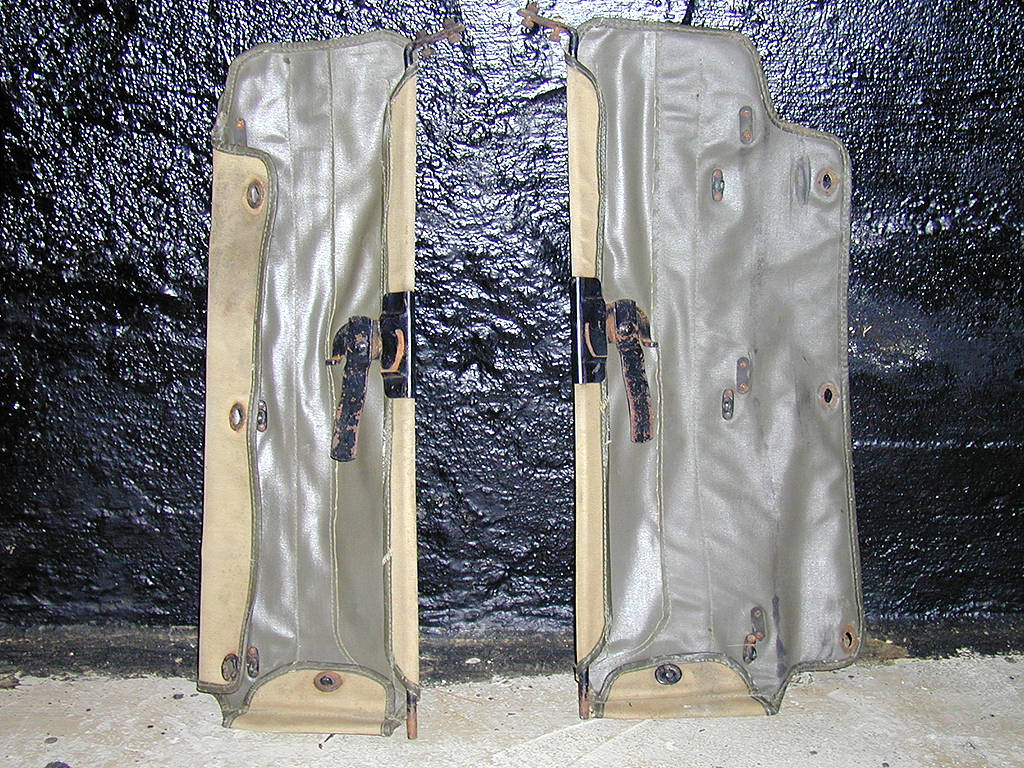

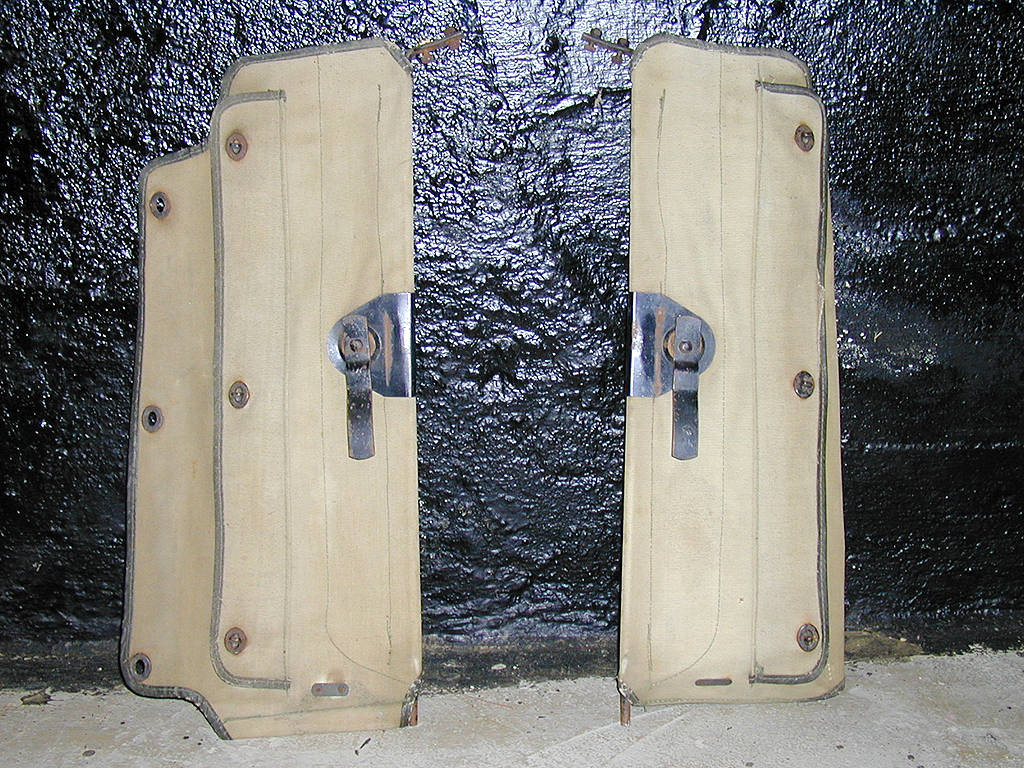

The door posts. The flap at far left wraps around and fastens to the bow upright. (As seen at right). The outer flap attaches the side curtains, ovelapping for weather seal.	The inner surfaces. (The posts are upside down, I forgot to invert them before saving-oops!)

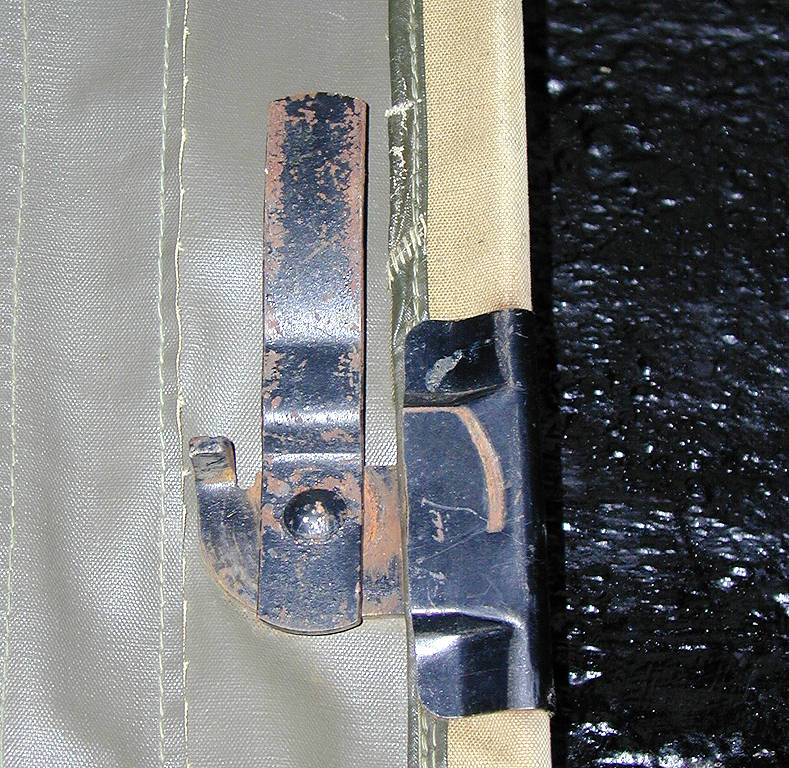

Outer door latch.	Inner door latch. The tab at left prevents the latch from falling through.

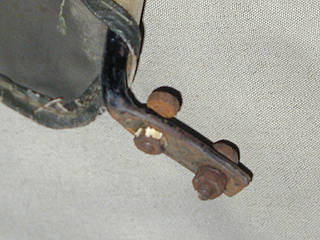

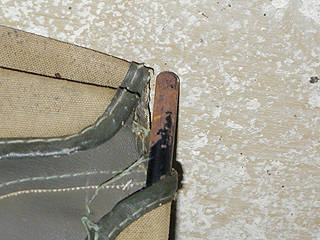

Upper attachment. The rod simply slips into the bracket on the upper door frame rod. (See Bows section)	Lower attachment. Bolts to the tub rail, on the curvature. This flattened metal part is angled and curver to fit properly.
