CJ2A Dash and Firewallholes for the various components |
|||||||||
|
|||||||||

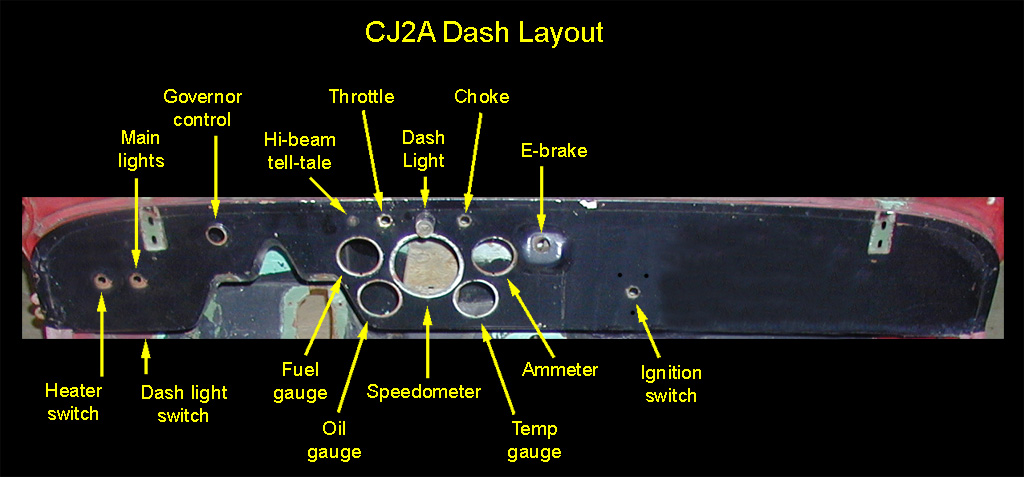

Dash Holes | |||||||||
The Hi-beam tell-tale light was not introduced until serial no. 32434, so no hole before that. If a heater or governor were never installed, the holes will have knock-outs. The dash light switch is on the bottom lip of the dash. Used up to serial no. 116421. |
|||||||||

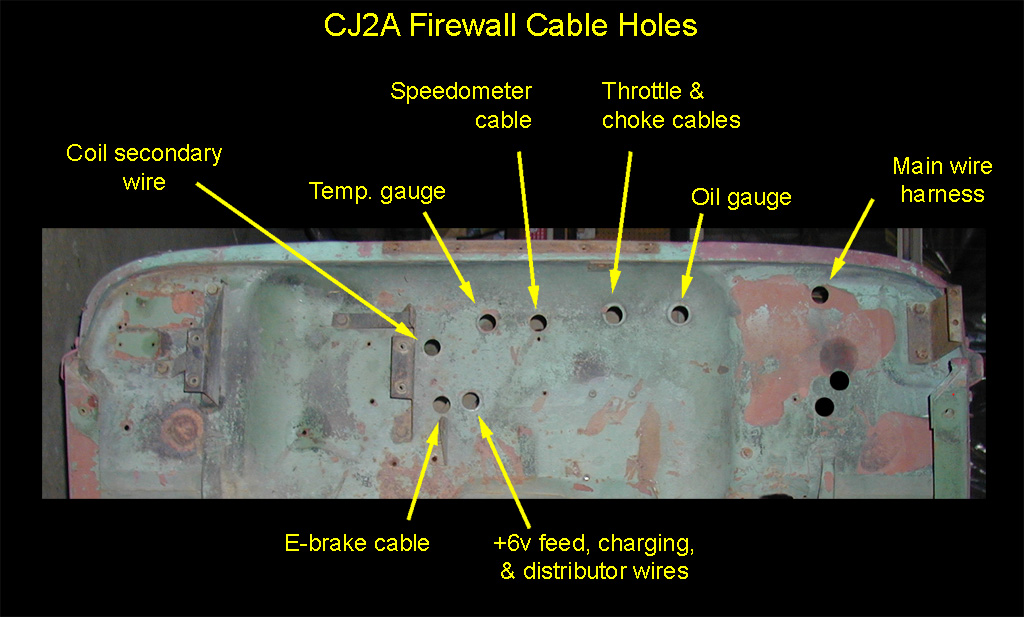

Firewall Holes | |||||||||
The "+6v feed" wire hole includes:
The "Main" wire bundle hole includes:
More on wiring here: CJ2A Wiring |
|||||||||
