Click a picture for a larger image (1024 x 768, will open in a new window).

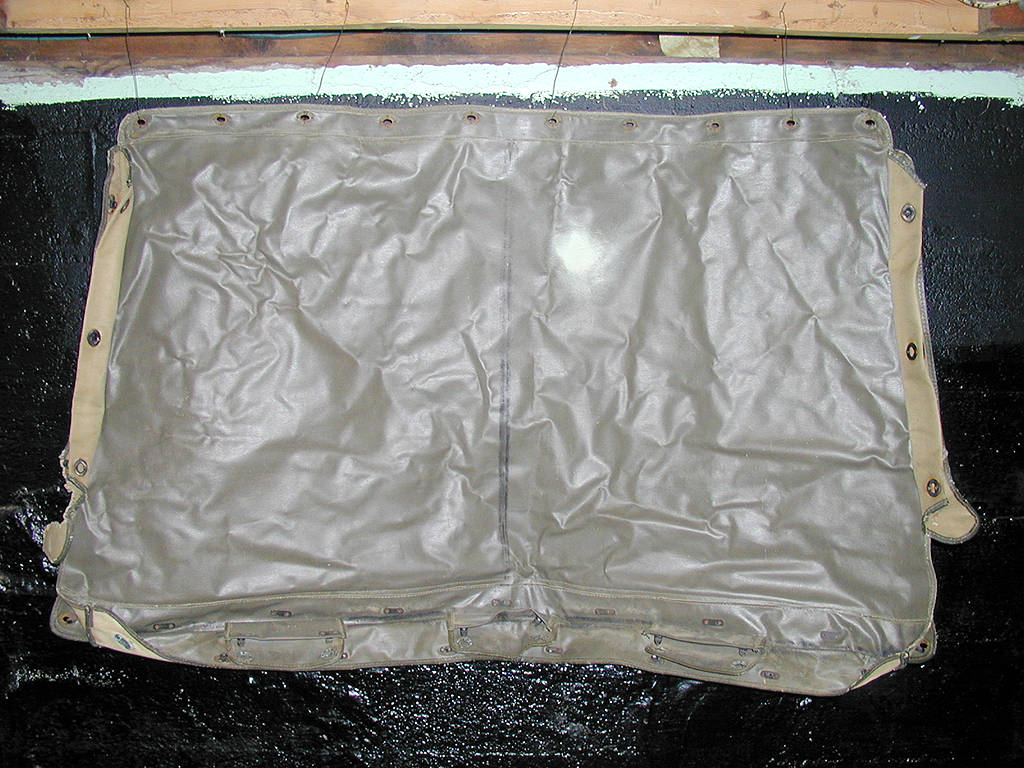

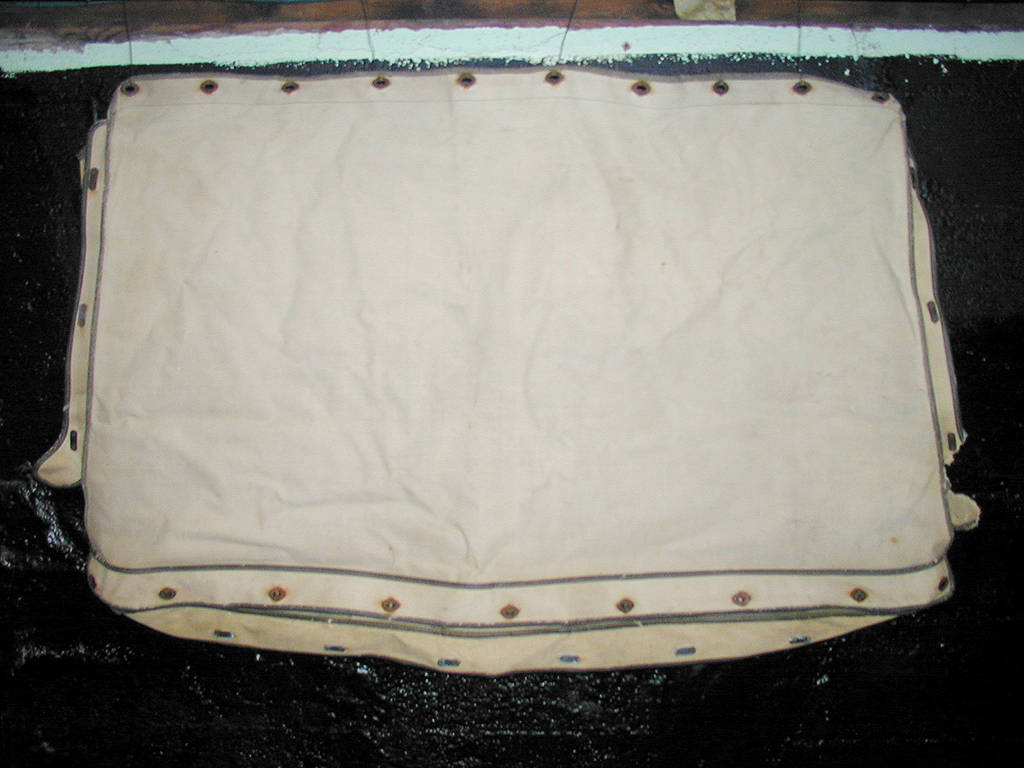

The cab top, outer surface. Upper edge fastens to the windshield tube. Lower part has a double row of fasterners. The very lower edge fastens to the cab back. The row above that fastens to the rear top canvas, and has an ovelapping flap for weather seal. Left and right flaps fold over the upper door frame rod.	The inner surface is coated with rubber. 3 short flaps at lower edge wrap around front bow.

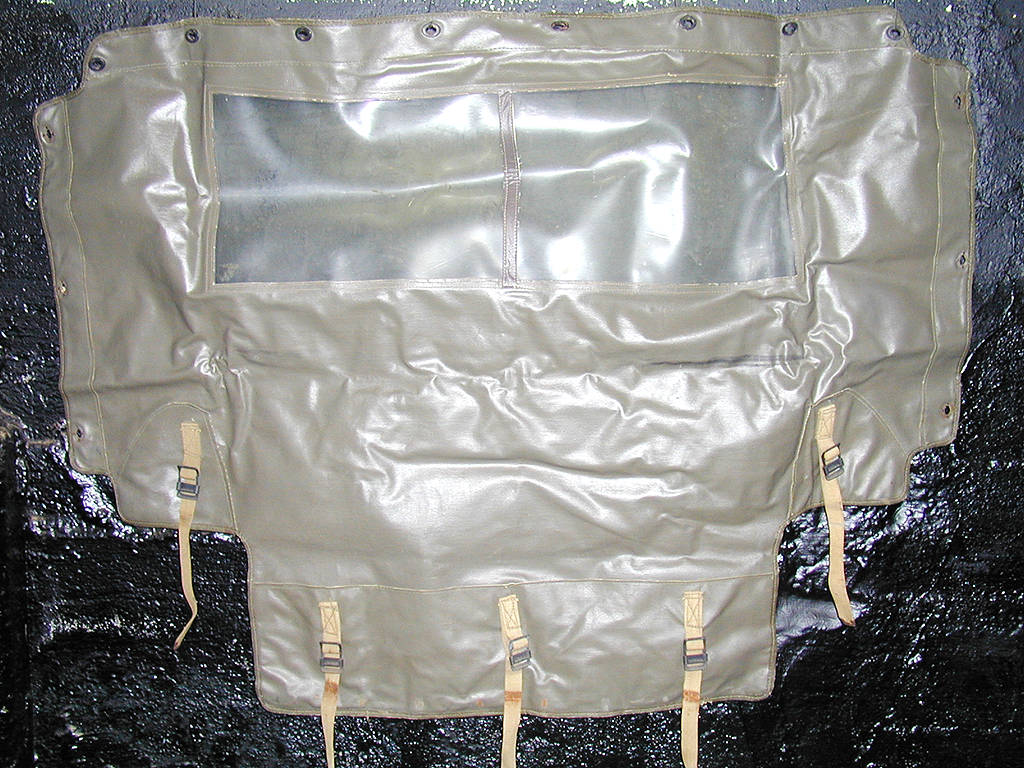

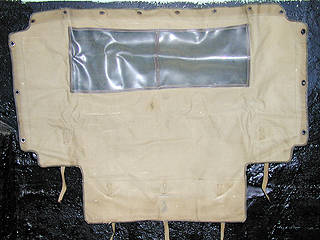

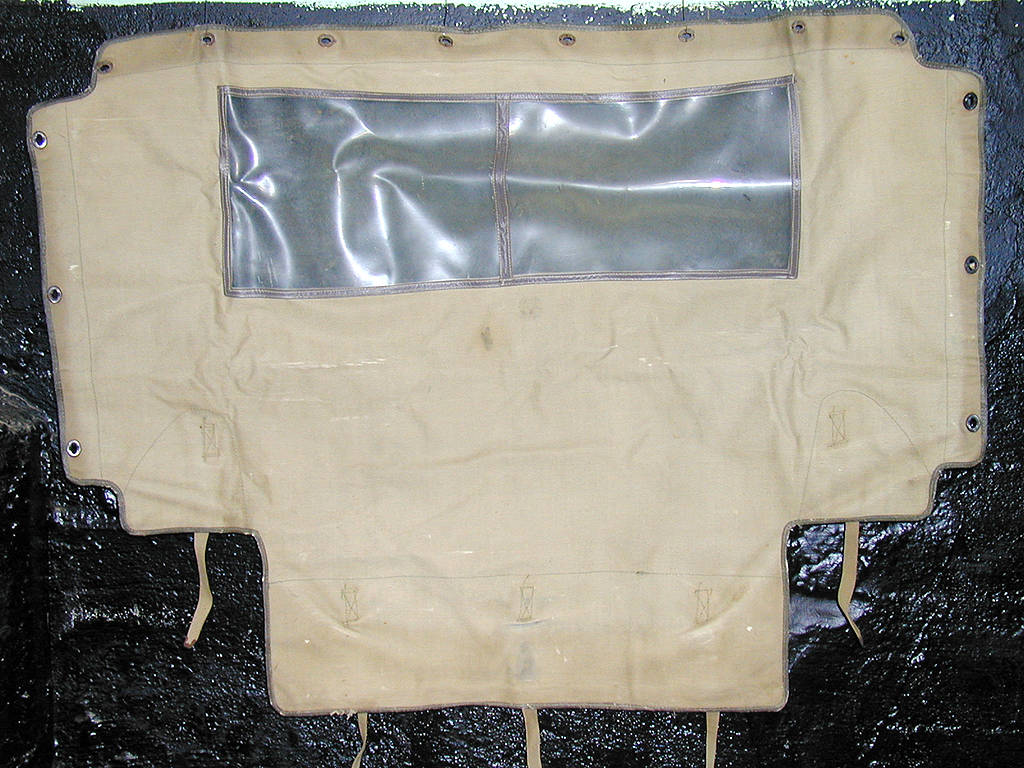

Cab back. Straps hold it down to footman loops. Left and right flaps fasten to door posts.	Inner surface of cab back.

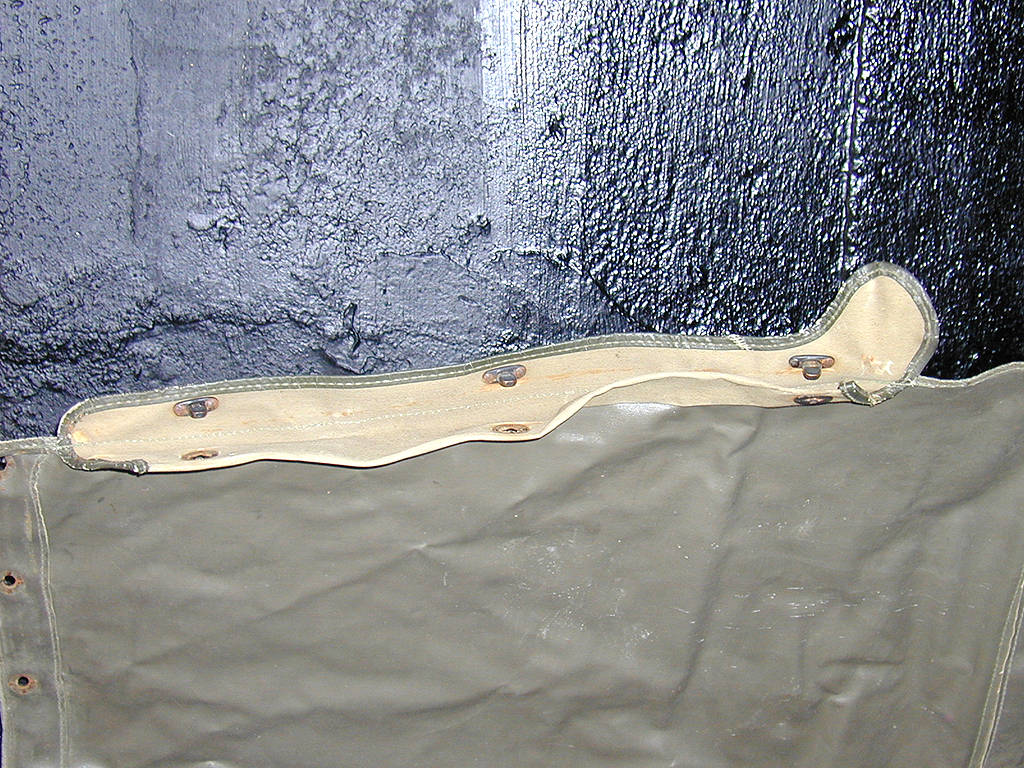

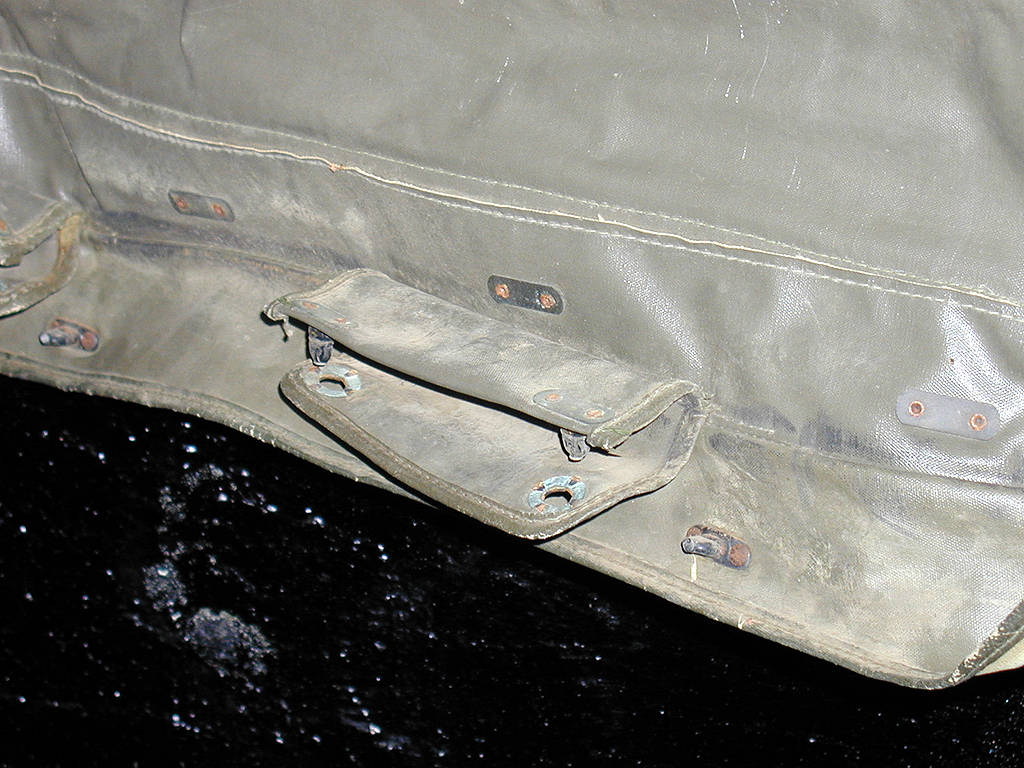

Close up of the bow top flap. There are three of these on the underside of the cab top.	Close(er) up of the door top frame flap.
