Driver was sealed by using 1/8" hollow screen spline, glued to form an O-ring.
The shiny part of the driver mounting bolts is where I had to grind them down.
Damn that Murphy!
The end of the maddness!
The 1259 drivers are wired in using 12ga. stranded OFC. Wire is crimped and soldered to the driver lugs. The D-cup has color-coded 5-way binding posts. The drivers are mounted using 1/4" Allen head bolts. I had to trim the outer edge of each bolt down to clear the lip on the driver frame recess.
| A 1259 driver in the hole, ready to be wired. | |
| The D-cup and terminals wired and in place. The Driver bolted down.
Driver was sealed by using 1/8" hollow screen spline, glued to form an O-ring. The shiny part of the driver mounting bolts is where I had to grind them down. |
|
| Self explanatory! | |

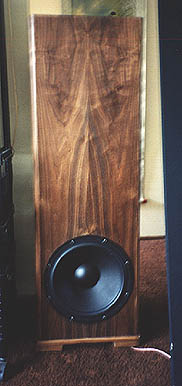

| The best clear daylight shot I ever got, and the camera moved!
Damn that Murphy! |
|

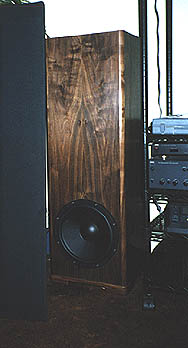

| The left speaker, in a darker corner of the room. | |

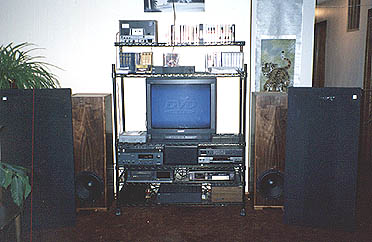

| The speakers in place at the sound center. | |
